Architectural-style drawings or accurate measurements of the exposed face frame and wall cabinet box details.

1️⃣ Face Frame Reveal (Above & Below the Door)

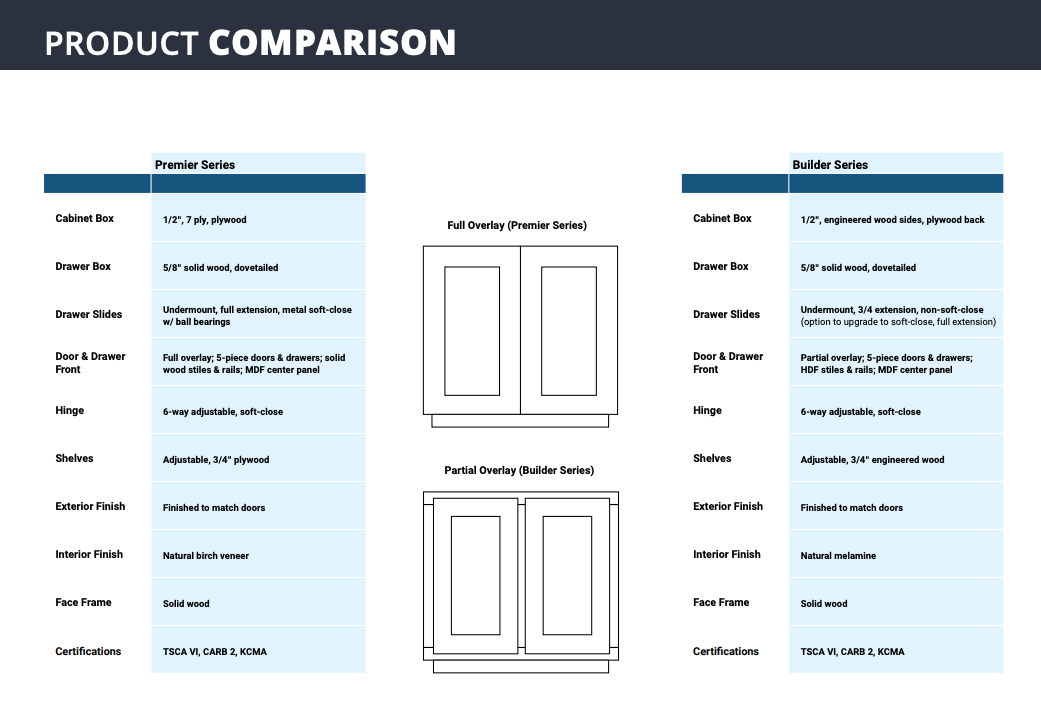

Premier Series

• Top (for crown molding): Approximately 1 inch of reveal
• Bottom: Less than 0.25 inch of reveal

Builder Series

• Top: Approximately 1 inch of reveal
• Bottom: Approximately 1 inch of reveal

💡 The top reveal allows space for crown molding installation. The bottom reveal varies by series.

2️⃣ Face Frame “Lip” (Overhang from Cabinet Box)

Premier Series

• Side overhang: Less than 0.25 inch
• Scribing: Not recommended unless filler is added

Builder Series

• Side overhang: Approximately 1.5 inches
• Scribing: Yes, can be scribed to fit the wall

💡 The face frame “lip” is the amount the frame extends beyond the cabinet box side panel.

📘 Additional Resources

For all other detailed cabinet measurements and architectural references, visit our:

👉 Product Specification Guide
